V-20 Series
V-20 Series
The cost-effective, reliable and easy-to-use drive for basic applications
Just because it's Easy...

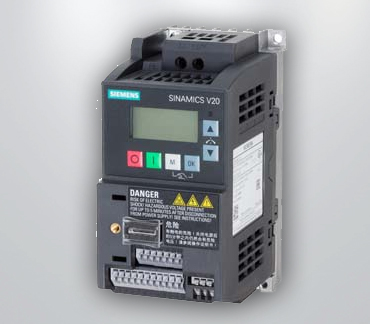

As more and more applications in plant and machinery construction require custom solutions to automate simple motion sequences with minimal requirements, Siemens answers with the compact SINAMICS V20 drive.
- Power Range: 0.12 kW to 30 kW.
- Installation: Easy options including push-through and wall mounting.
- Commissioning: User-friendly with mobile and local operator panels.
- Design: Robust with advanced cooling and coated electronics.
- Efficiency: ECO mode and integrated energy monitoring.
- Applications: Suitable for pumping, ventilating, compressing, and more.
... doesn't mean it's not Powerful.
The SINAMICS V20 is surprisingly versatile, features quick commissioning times, robustness, and energy efficiency. With four frame sizes, it covers a power range extending from 0.16 to 20 HP.
Features
|
Easy to Install |
Easy to Use |
Easy to Save Money |
|||
|
• |
Push-through and wall mounting – side-by-side possible for both |
• |
Parameter loading without power supply |
• |
ECO mode for V/fHz V2/Hz |
|
• |
USS and MODBUS RTU at terminals |
• |
Integrated application and connection macros |
• |
Hibernation mode |
|
• |
Integrated braking chopper from 10 - 20 HP (7.5 - 15 kW) |
• |
Keep Running Mode for uninterrupted operation |
• |
DC coupling |
|
• |
Wide voltage range, advanced cooling design and coated PCBs increase robustness |
||||
|
Format |
Blocksize component drive |
|
|
Supply voltage / power range |
1AC 200 – 240V ± 10% : 0.16 – 4 HP (0.12 – 3.0 kW) |
|
|
Control methods |
Linear V/Hz, square law V/Hz, multi-point V/Hz |
|
|
Communication |
USS/Modbus RTU |
|
|
Functions |
• Integrated braking chopper |
• Keep-Running mode |
|
Motor compatibility |
Induction |
|
|
Degree of protection |
IP20 |
|
|
Commissioning / configuration tools |
DT Configurator, Smart Access Wi-Fi |
|
|
Safety technology |
— |
|
|
Standards compliance |
CE, cULus, c-Tick, KC |
|
