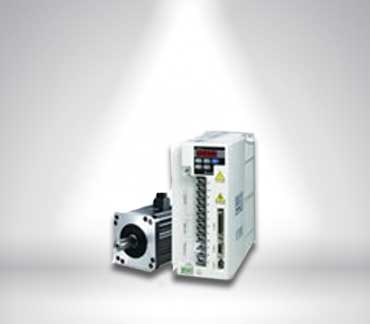

ASDA-B2 Series

Specifications :

• A wide power range: from 4.5kW to 7.5kW, 3-phase
• Input power supply: AC 200V ~ 230V
• Frequency characteristics (Responsiveness): 550Hz
• Incremental 20-bit (1280000 ppr) optical encoder
• Medium / High inertia servo motors are available including: 3kW, 3.5kW, 4.5kW, 5.5kW, 7.5kW.
• Max. input frequency: Line receiver 4Mbps for high-speed motion command.
• Built-in Position / Speed / Torque control modes
• 8 internal programmable registers (point-to-point position control)
• Various internal control functions for a vast range of applications (as A and AB series)
• Modbus communication protocol is supported as standard. Communication Interface: RS-232 / RS-485 / RS-422

Applications :

Spring machine, bending machine, bending press, feeding machines, electric injection molding machine, double column type machining center, presses machine.
